Installing light bulb igniter
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
- Check the condition of the seal -1- and check that it is fitted correctly on the light bulb igniter -2- .
- Connect electric plug connections -3-
on the light bulb igniter until they engage securely.

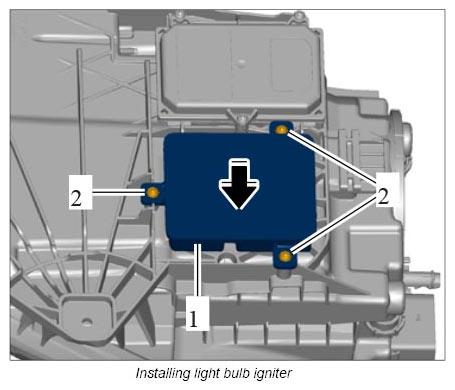

- Carefully insert light bulb igniter -1- into the headlight.
- Tighten fastening screws -2- . Tightening torque 1.5 Nm (1 ft. lb.)
