Installing light bulb control unit

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work .
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
Do not touch electric pins and plug contacts .

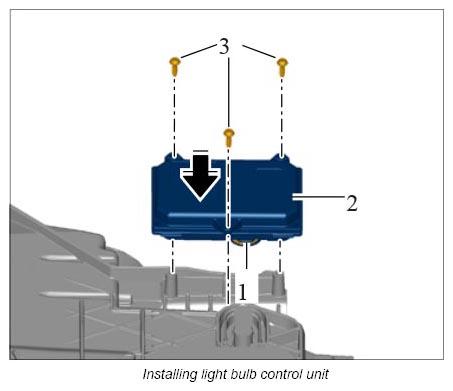

Check that the seal -1- is fitted correctly on the light bulb control unit -2- .
Carefully insert light bulb control unit into the headlight.
Tighten fastening screws -3- .
