Removing steering-column switch

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

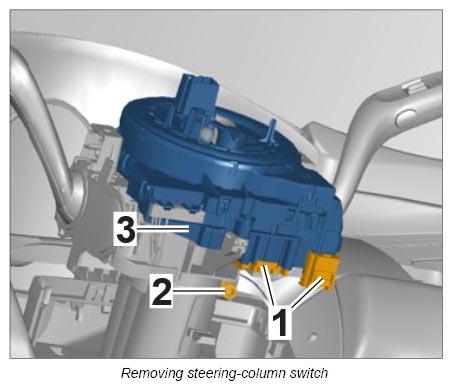

  1. Release and disconnect electric plug connections -1-  .
  2. Loosen clamping screw -2-  .
  3. Remove steering-column switch -3-  with control unit for steering wheel electronics from the steering column.
    G12837323

    When replacing the steering-column switch:

  4. Remove steering wheel electronics control unit from the steering-column switch. → 916219 REMOVING AND INSTALLING CONTROL UNIT FOR STEERING WHEEL ELECTRONICS - "REMOVING "
