Adjusting brake light switch
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
The brake light switch must be re-adjusted if the position of the brake pedal is changed after adjusting the brake light switch. The brake pedal must be unactuated at its end position when adjusting the brake light switch.

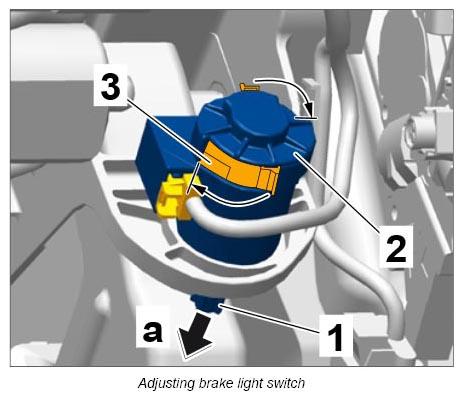

- Press tappet -1- fully into the brake light switch -2- .
- Disengage locking ring -3-
and turn it approx. 60° anti-clockwise until it engages.

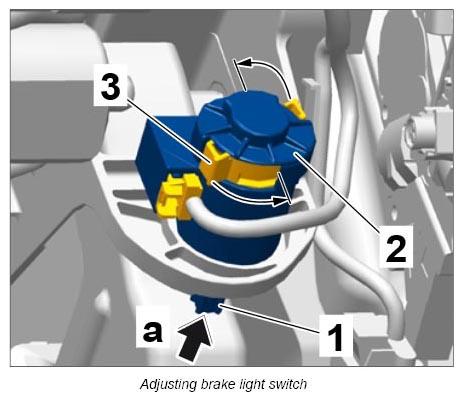

- Release tappet -1- on the brake light switch -2- .
- Disengage locking ring -3- and turn it approx. 60° clockwise until it engages.
