Installing tail light in rear lid

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

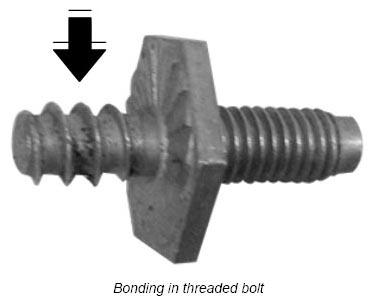

  1. If the threaded bolt in the tail light has become loose during removal, it must be bonded into the tail light before installation.
    1. 1.1. Remove threaded bolt from tail light.
    2. 1.2. Clean the threaded bolt and thread in the tail light.
    3. 1.3. Coat threaded bolt with a thin layer of Scotchweld DP 490  .
    4. 1.4. Install threaded bolt in the tail light.
    G12837309
  2. The tail light is installed in reverse order to removal.
  3. Tighten fastening nuts. → Tightening torque: 7.2 Nm (5.1 ft. lb..)
