Installing halogen bulb
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Incorrect handling of bulbs
- Risk of damage to bulbs and the bulb housing
→ Switch off ignition and remove ignition key.
→ Switch off the relevant loads when changing bulbs.
→ Only use bulbs listed in the bulb table.
→ Only install clean bulbs that are free of grease.
→ Always use a cloth or soft paper when working with bulbs.
→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.
→ In certain states, it is compulsory to carry spare light bulbs.

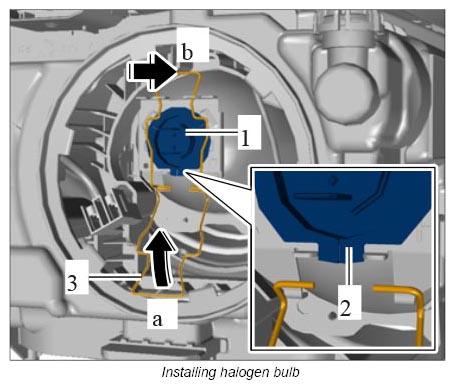

- Install halogen bulb -1-
in the headlight.
- 1.1. Position halogen bulb in the socket on the headlight in such a way that the guide -2- is pointing downwards.
- 1.2. Bend clip -3- up -a- and unhook it -b- .

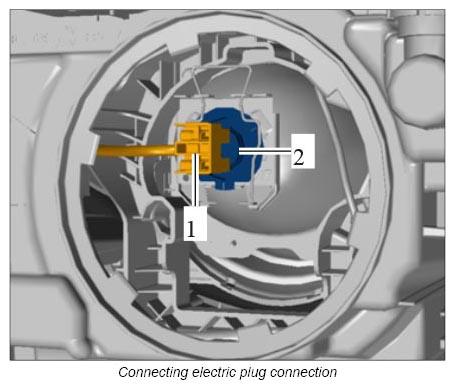

- Connect electric plug connection -1-
to the halogen bulb -2-
.

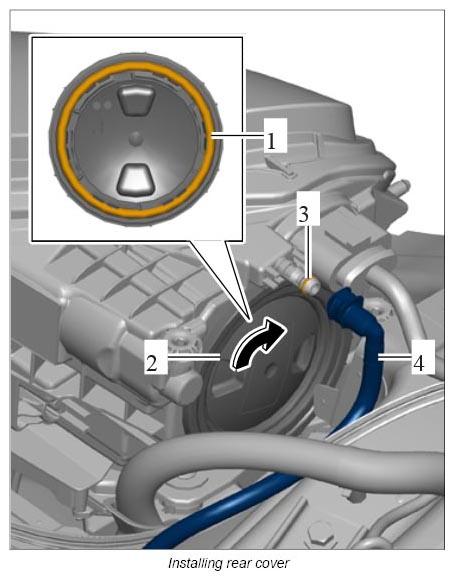

- Check condition of the seal -1- and check that it is fitted correctly on the rear cover -2- .
- Position rear cover on the headlight and lock it by turning it in direction of arrow.
- Check condition of O-ring -3- and check that it is seated correctly.
- Connect hose connection -4- for the breather hose at the headlight until it engages securely.
