Removing headlights
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.
- Switch off position lights.
- Switch off ignition and pull remote control out of ignition lock.

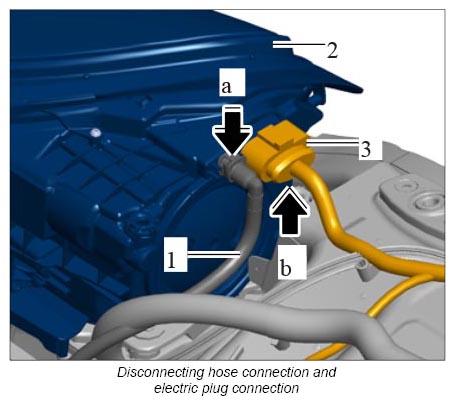

- Release hose connection for the breather hose -1- (-a- ) and pull it off the headlight -2- .
- Release electric plug connection -3-
(-b-
) and pull it off the headlight.

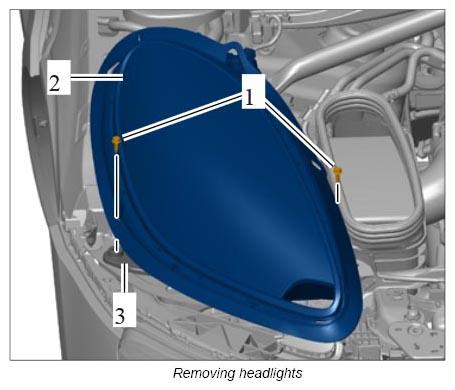

- Unscrew fastening screws -1- .
- Remove headlight -2- from the headlight mounting point -3- .
