Checking adjusting elements

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

To restore the original installation position, thereby minimizing the amount of adjustment work required, the following steps must be carried out prior to removal:

Mark the position of the headlight mounting with respect to fastening screws .
Measure and take note of the height of the headlight mounting with respect to the body .

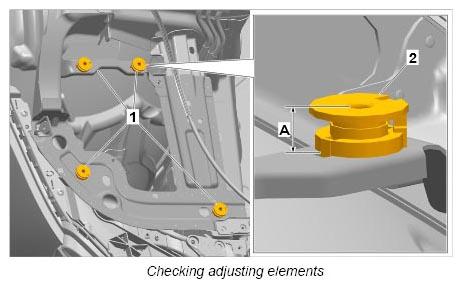

Check adjusting elements.

1.1. Check adjusting elements -1- for damage and make sure they are seated securely. If an adjusting element -1- is damaged, it must be replaced. Check that the adjusting elements -1- are fitted correctly in the body.
1.2. Measure the height -A- of the adjusting elements -1- using a calliper gauge and write it down so that you can set the original adjustment height again after the next test step.
1.3. Check that the adjusting rings -2- are not stiff.
IMPORTANT: Left thread! It must be possible to turn adjusting ring -2- without resistance over the entire thread length, otherwise replace adjusting element -1- .
1.4. Set original height -A- of the adjusting elements -1- again.
