Removing main headlight switch
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

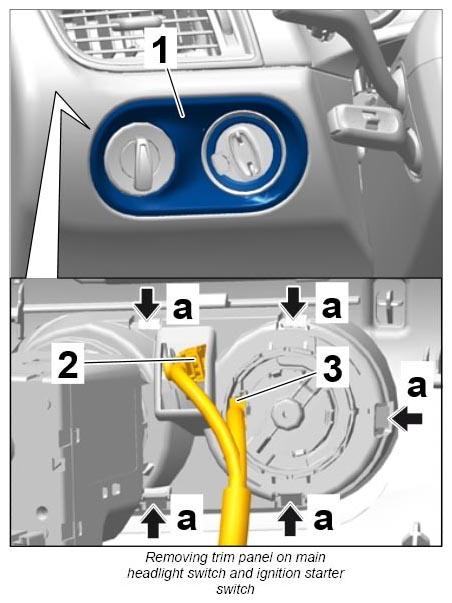

- Remove trim panel -1-
on main headlight switch and ignition starter switch.
- 1.1. Disconnect electric plug connection -2- for the ignition starter switch light.
- 1.2. Unclip locking lugs -a- and remove trim panel.
- Disconnect electric plug connection -3-
for the main headlight switch.

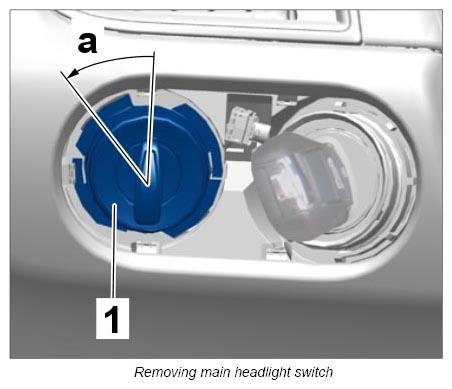

- Turn main headlight switch housing -1- approx. 40° anti-clockwise -a- and remove it from the trim panel under the dashboard at the left.
