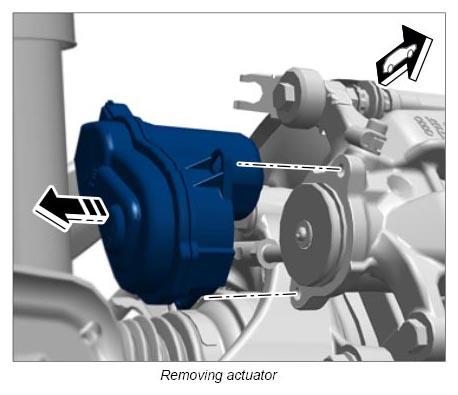

Removing EPB actuator
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

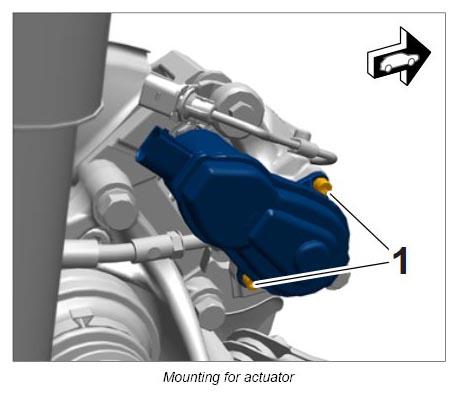

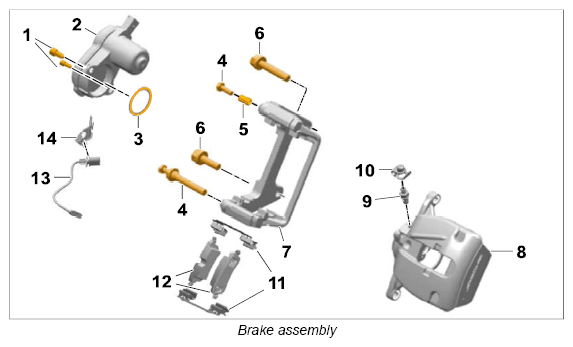

| 1 | Fastening screw for EPB actuator |
| 2 | EPB actuator |
| 3 | Sealing ring |
| 4 | Fastening screw securing brake calliper to calliper carrier |
| 5 | Contact for brake pad wear indicator |
| 6 | Brake calliper |
| 7 | Calliper carrier |
| 8 | Brake pads |
| 9 | Pad retaining bracket |
| 10 | Fastening screw securing brake calliper to wheel bearing housing |
