Installing EPB actuator
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information

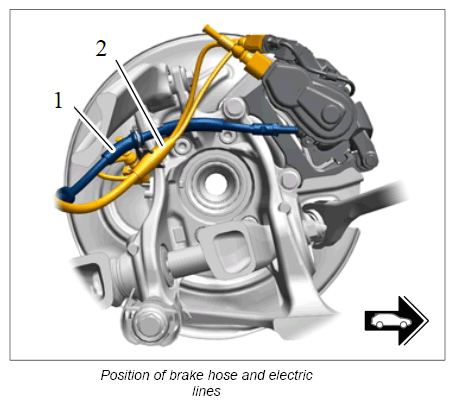

Check that the brake hose -1- and electric lines -2- are routed correctly (brake hose must be routed between the wheel bearing housing and electric lines).
Information
- Sealing ring must always be replaced .
- Clean ring groove and contact surfaces if they are dirty! Only use brake cleaner .
- Make sure that the ring groove on the sealing ring and the contact surface of the actuator are not damaged .
