Removing rear brake discs

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The brake and electronic parking brake must not be operated when the brake calliper is removed.

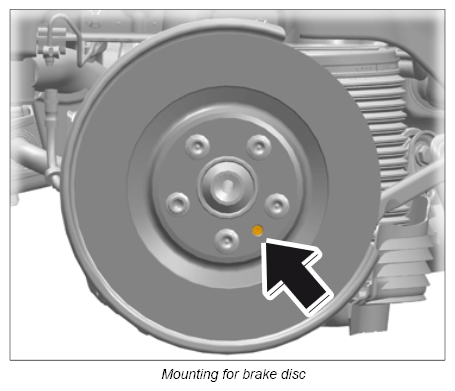

  1. Unscrew fastening screw on the brake disc. Hold the brake disc securely while doing this.
    G12888225
  2. Remove brake disc from the wheel hub.
