Subsequent work
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Install brake calliper → 473919 REMOVING AND INSTALLING FRONT BRAKE CALLIPER
.WARNING: Improper handling of fluid-carrying lines
- Escaping fluid
- System malfunction
- Risk of escaping fluid catching fire
→ Do not kink, crush or twist the line
→ Avoid torsion and shearing
→ Fit the line carefully

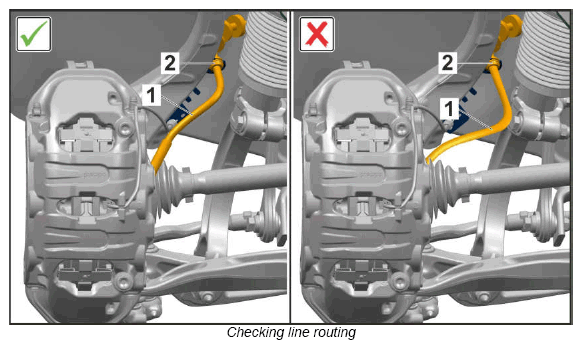

- Check line routing of brake hose -1-
.
When doing this, check that the brake hose -1- (as shown) is at its original position in the grommet -2- and is not touching the spring strut.
