Wheel hub lateral runout

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The front face of the wheel hub must not be corroded and may have to be cleaned using a fine emery cloth.

Measure the wheel hub lateral runout at the front face of the wheel hub. You should always measure the external and internal diameters of the wheel bolt area.

Remove brake disc. → 465019 REMOVING AND INSTALLING FRONT BRAKE DISC

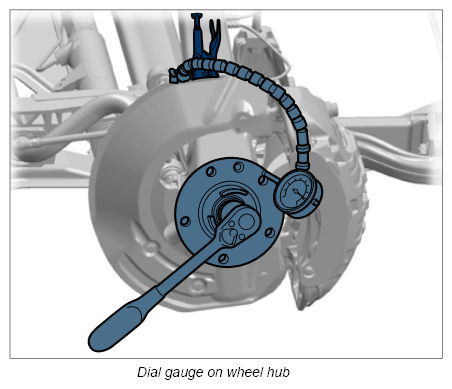

Fit adapter dial gauge set with ball joint arm Nr.147-1 at a suitable position on the wheel bearing housing. Fit the dial gauge with some preload. → Dial gauge on wheel hub
