Brake disc lateral runout

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel → 440519 REMOVING AND INSTALLING WHEEL
  2. Adapter plate 9510/2  must be fitted and tightened to tightening torque 160 Nm (118 ft. lb.). → Adapter plate on wheel hub
    G12888201

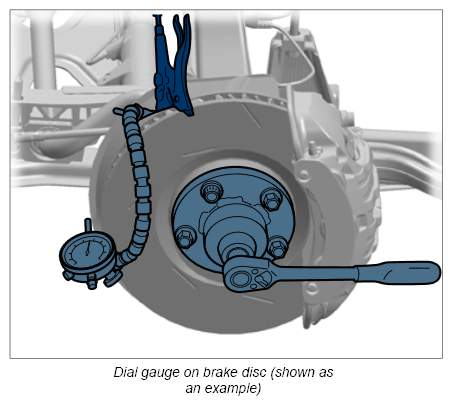

  3. Fit adapter dial gauge set with ball joint arm Nr.147-1  at a suitable position on the wheel bearing housing. → Dial gauge on brake disc (shown as an example)
    G12888202
  4. Fit the dial gauge with some preload and measure the lateral runout at the greatest external diameter of the brake disc.
