Installing front disc brake pads

→ Fit new pad retaining springs

→ Fit new fastening screws

→ Only use the type-specific brake pads.

→ Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.

→ Replace the brake discs on each axle as soon as the brake pad wear limit is reached.

Information

Applies only to 17" brakes (brake calliper color: Black):

• Brake pads are bonded to the brake piston. Before installation, pull off the protective film on the new brake pads and remove adhesive residue on the brake piston  .
• Check running direction of brake pads (marked on brake pad by an arrow)!

Applies to all brakes  :

• The back of the pad backing plates must not be greased  .
• Check the brake discs for wear. For wear limits  , see → 465002 CHECKING FRONT BRAKE DISCS (WEAR ASSESSMENT)  → 465102 CHECKING FRONT PCCB BRAKE DISCS (WEAR ASSESSMENT) .
• Brake discs must be clean and free of grease  .
• The core of the warning contact line must not be exposed! Worn insulation is not important  .
• If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back  .
• Use a new repair kit  .

1. Fit new pad retaining springs.

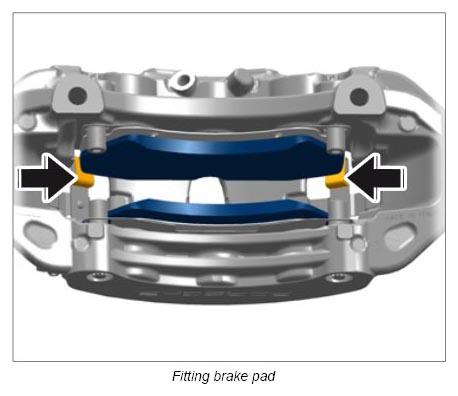

2. Place disc brake pad onto the sealing surfaces of the pad retaining springs.

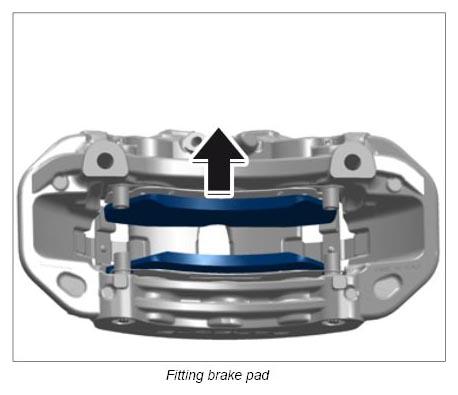

3. Press brake pad into the brake calliper with slight pressure and slide it onto the pad retaining pins.

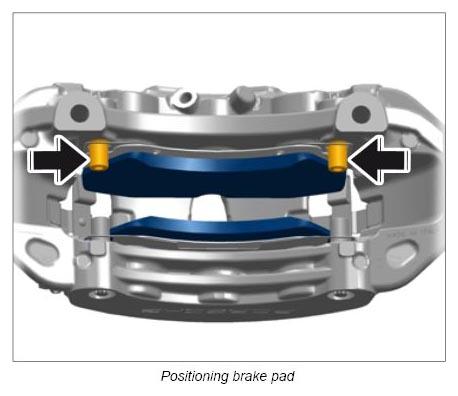

4. Fit disc brake pad.
5. Fit warning contact.
