Removing air guide for brake disc

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The air guide will be damaged irreparably during removal. A new air guide must therefore be fitted whenever the airbag is removed.

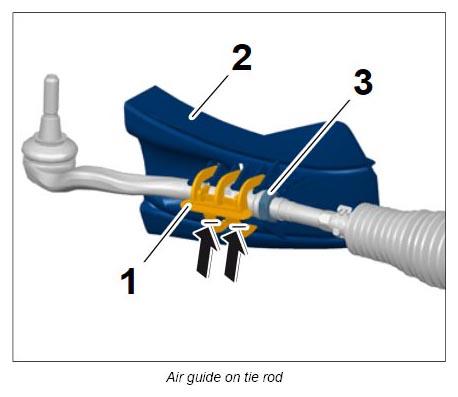

  1. Remove air guide -2-  from the tie rod.
    G12888157
    1. 1.1. Cut through the lower arms of the clamp -1-  at the marked positions using a suitable tool.
    2. 1.2. Remove air guide -2-  .
