Installing air guide for brake disc
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit new air guide on the tie rod.

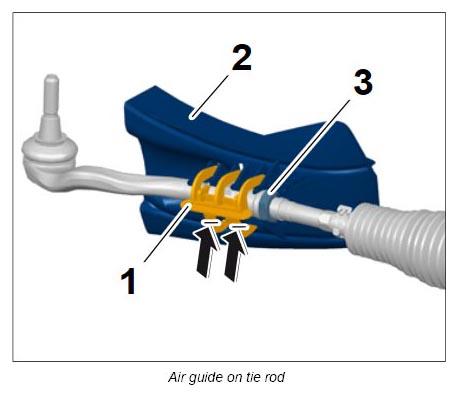

- 1.1. Push the air guide -2-
onto the tie-rod ball from the front.
Check position of the lock nut -3- in the cut-out of the air guide -2- .
- 1.2. Secure the air guide with a new clamp.
Check that the clamp locks correctly.

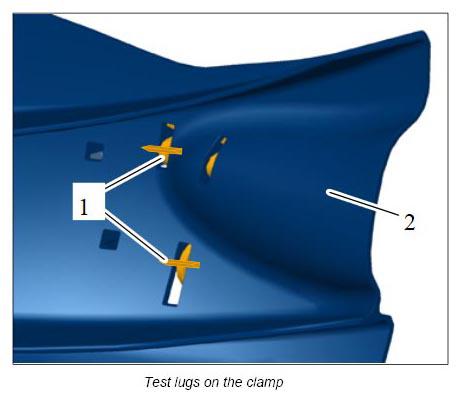

Check that the clamp is locked correctly through the test lugs -1- in the air guide -2- .
