Removing spray nozzle

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

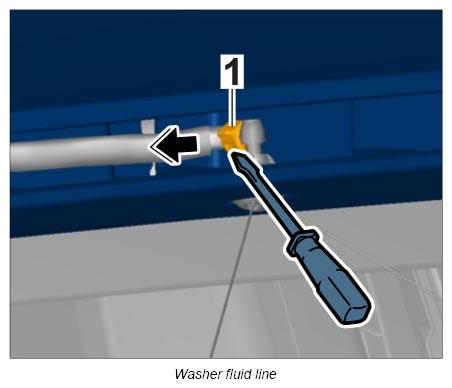

  1. Release washer fluid line from spray nozzle using a screwdriver -1-  and remove it.
    G12837249Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press spray nozzle down and remove it.
