Removing pump for headlight cleaning system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

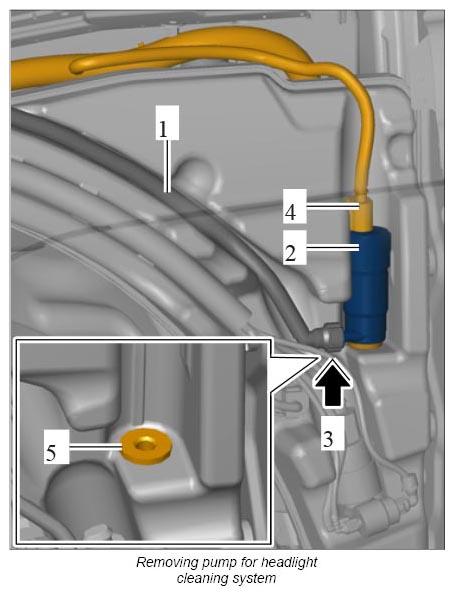

  1. Release hose for headlight cleaning system -1-  at the headlight cleaning system pump -2-  (-3-  ) and pull it off. Collect any fluid that leaks out in a suitable container.
  2. Lever headlight cleaning system pump out of the washer-fluid reservoir.
  3. Release and unplug electric plug connection -4-  .
  4. Check condition of seal -5-  and check that it is seated correctly on the windscreen-washer reservoir.
G12837248Courtesy of PORSCHE CARS NORTH AMERICA, INC.
