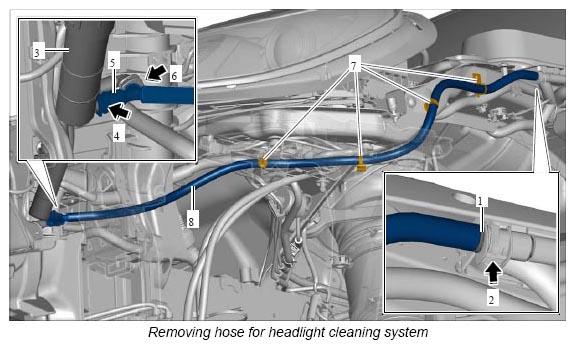

Removing hose for headlight cleaning system - section from wing connection point to left spray nozzle
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Release hose connection at the connection point -1- (-2- ) and pull it off. Collect any fluid that leaks out in a suitable container.
- Release hose connection at the spray nozzle -3- for the headlight washer system at the left -4- and pull it off.
- Release hose connection at the Y-piece -5- (-6- ) and pull it off.
- Unclip the holder -7- for the headlight cleaning system hose -8- and remove hose for headlight cleaning system.
