Removing hose for headlight cleaning system - section from reservoir to wing connection point

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

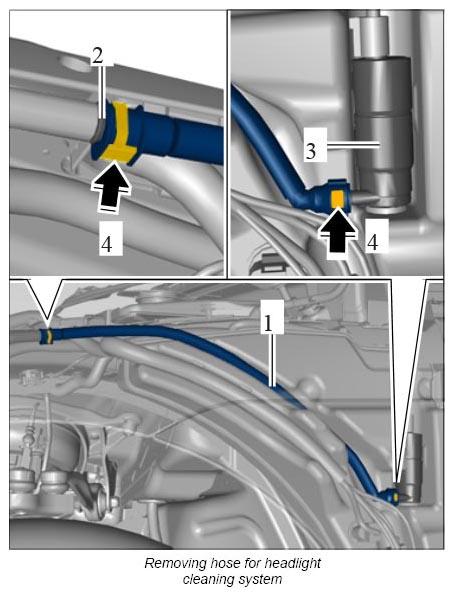

  1. Release hose for headlight cleaning system -1-  at the wing connection point -2-  pump for headlight cleaning system -3-  (-4-  ) and disconnect it. Collect any fluid that leaks out in a suitable container.
G12837245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
