Removing spray nozzle for headlight washer system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

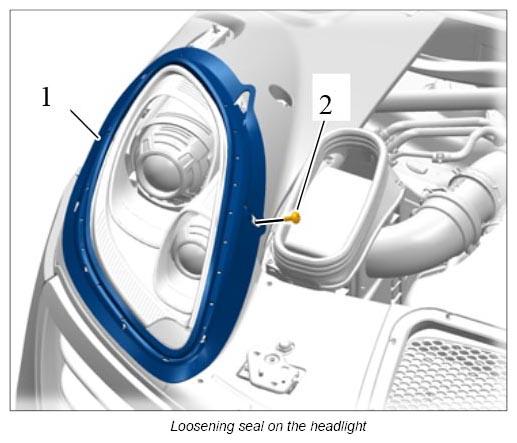

Loosen seal -1- on the headlight.
1. 1.1. Unscrew fastening screw -2- .
2. 1.2. Unclip seal close to the spray nozzle for the headlight washer system on the main headlight using a plastic wedge and lift it up carefully.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

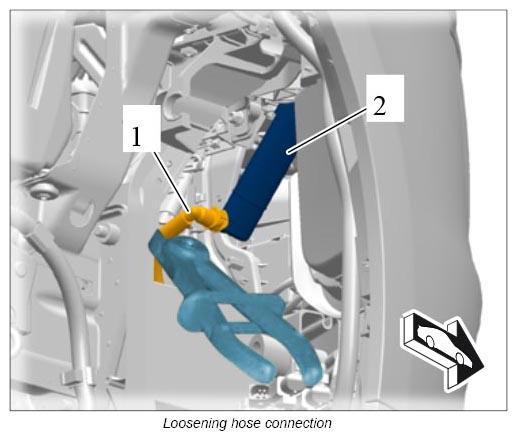

Disconnect hose for headlight washer system.
Release hose connection -1- at the spray nozzle for the headlight washer system -2- and pull it off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

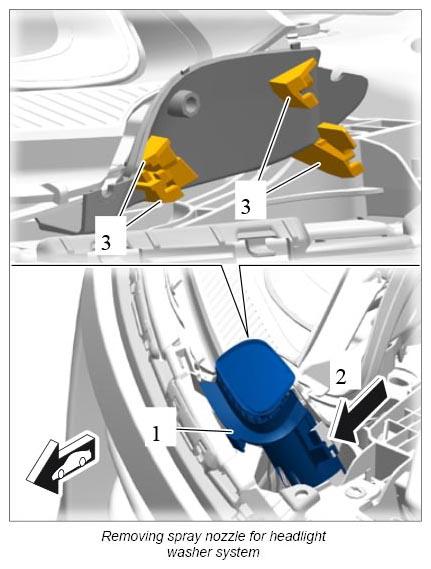

Release spray nozzle for headlight washer system -1- (-2- ) and slide it sideways out of the guides -3- on the headlight.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
