Removing sender for washer fluid-level indicator

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

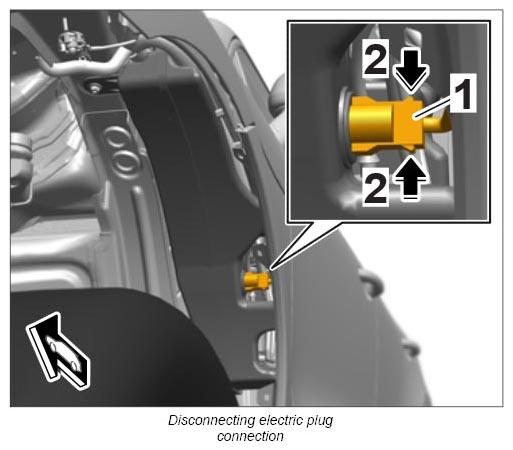

  1. Release and disconnect electric plug connection -1-  (-2-  ).
    G12837240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

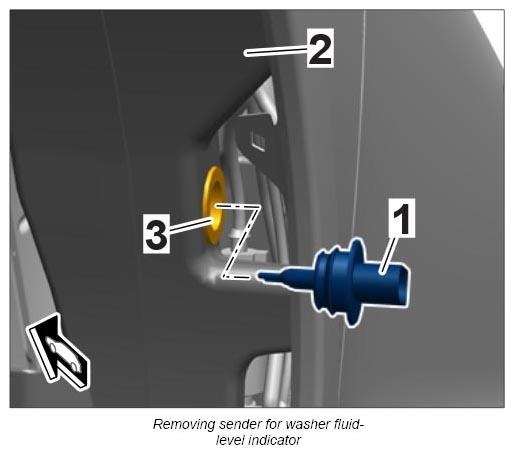

  2. Lever sender for washer fluid-level indicator -1-  out of the windscreen-washer reservoir -2-  . Collect any fluid that leaks out in a suitable container.
  3. Check condition of seal -3-  and check that it is seated correctly in the windscreen-washer reservoir. Replace seal if necessary.
G12837241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
