Removing spray nozzle for windscreen washer system
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Removing spray nozzle for windscreen washer system

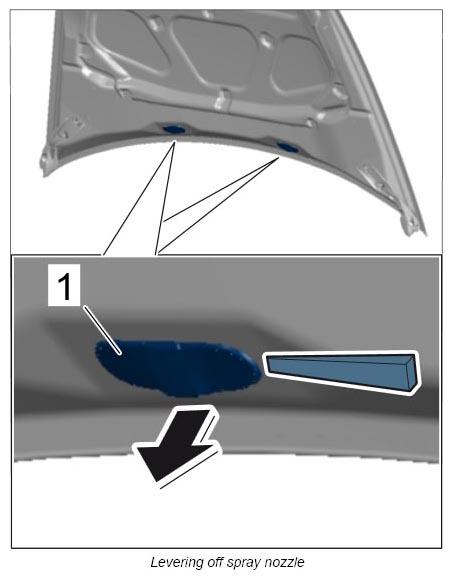

Lever spray nozzle -1-
out of the bonnet using a plastic wedge.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

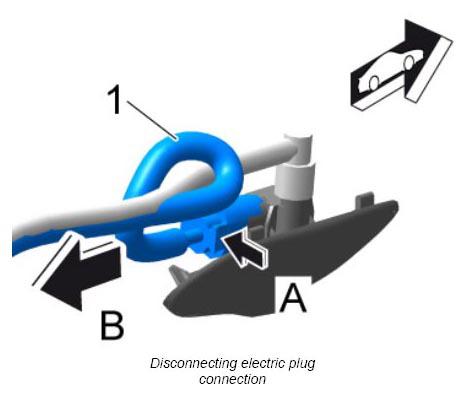

Release electric plug connection -1-
for the spray nozzle -A-
and pull it off -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

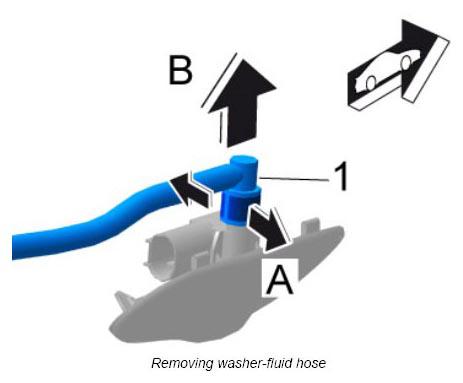

Release washer-fluid hose -1-
(-A-
) and pull it off -B-
.
