Checking and adjusting spray nozzle for windscreen washer system
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Only use windscreen cleaning agents and antifreeze approved by Porsche.
Observe the required mixture ratio in accordance with manufacturer's specifications and season.
- Fill the windscreen-washer reservoir with a mixture of water and window cleaner or antifreeze, depending on the season.

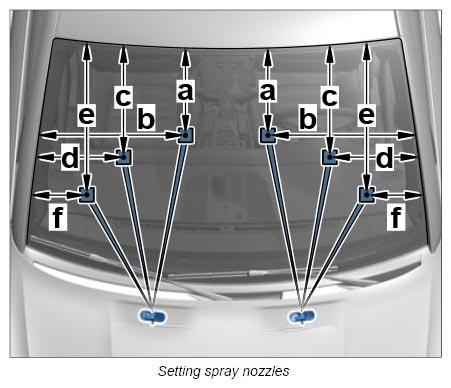

- Mark the points at which you want the jet sprays to hit the windscreen.
- 2.1. For the inner spray nozzles: Mark off dimensions -a- Length 200 mm and dimensions -b- Length 535 mm and mark the intersection point on the windscreen using commercially available adhesive tape.
- 2.2. For the center spray nozzles: Mark off dimensions -c- Length 325 mm and dimensions -d- Length 335 mm and mark the intersection point on the windscreen using commercially available adhesive tape.
- 2.3. For the outer spray nozzles: Mark off dimensions -e- Length 480 mm and dimensions -f- Length 165 mm and mark the intersection point on the windscreen using commercially available adhesive tape.
- Actuate the windscreen washer system and align the spray nozzles for the windscreen washer system to the marked spray points as required using adjusting tool T40187 .
- Remove adhesive tape and any adhesive residues from the windscreen.
