Removing hose for windscreen washer system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

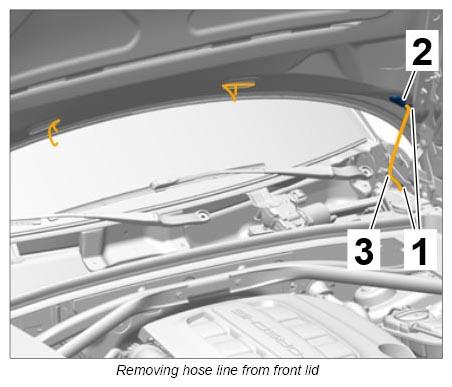

  1. Unclip the holder -1-  from the front lid and left hinge.
  2. Pull grommet -2-  and wire harness -3-  out of the front lid.
    G12837225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

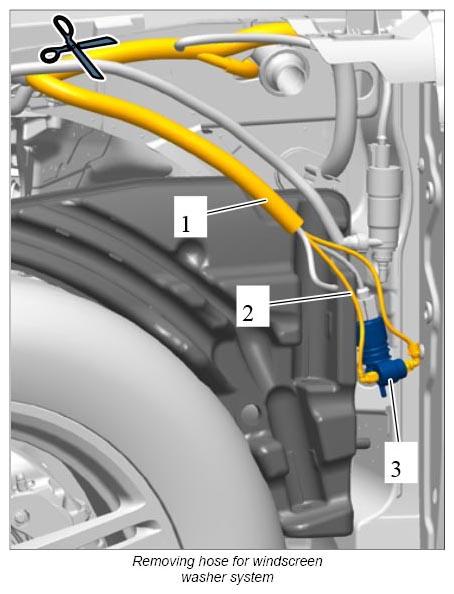

  3. Disconnect wire harness -1-  and release hose for windscreen washer system -2-  .
  4. Disconnect hose for windscreen washer system at the windscreen washer system pump -3-  and remove it. → 925619 REMOVING AND INSTALLING PUMP FOR WINDSCREEN WASHER SYSTEM
G12837226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
