Removing wiper blade for rear window washer
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
- Switch off ignition and pull remote control out of ignition lock.

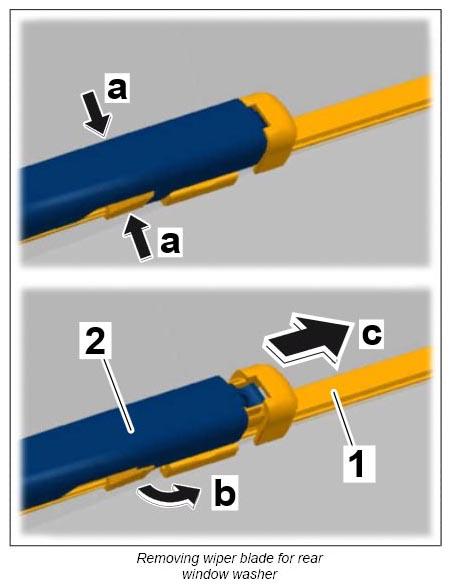

- Remove wiper blade for rear window washer -1- .
- 2.1. Lift up wiper arm for rear window washer -2- .
- 2.2. Disengage locking mechanisms -a- , press them down slightly -b- and pull wiper blade for rear window washer -1- off wiper arm for rear window washer -2- (-c- ).
- 2.3. Carefully place wiper arm for rear window washer -2- on the rear window.
