Installing wiper arm for rear window washer

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Switch wiper motor for rear window washer on and off and allow wiper motor for rear window washer to move to its end position.
Switch off ignition and pull remote control out of ignition lock.

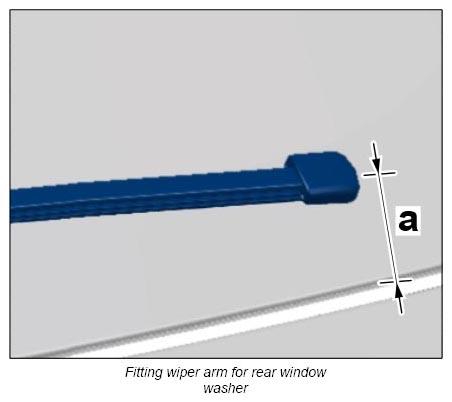

Fit wiper arm for rear window washer on the wiper axle so that dimension -a- Nominal value 25 mm is set on the wiper blade.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

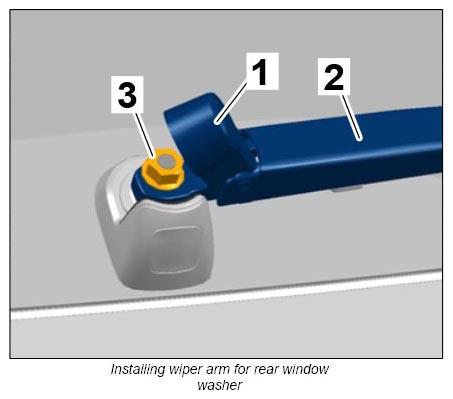

Tighten fastening nut -3- . Tightening torque 19 Nm (14 ft. lb.)
Fit cover -1- on wiper arm for rear window -2- until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
