Removing wiper motor for rear window washer
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

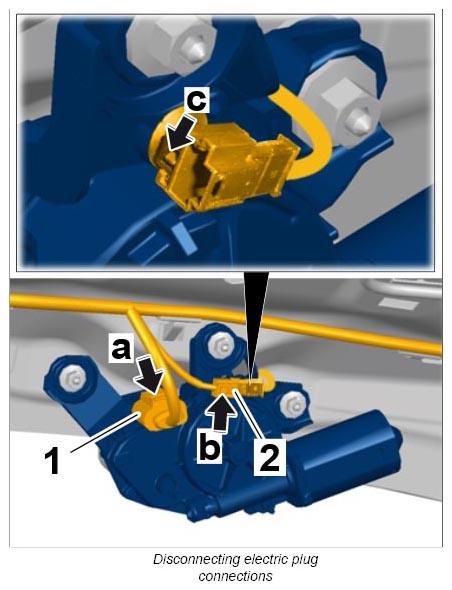

- Release electric plug connection -1-
(-a-
) and disconnect it.
- Release electric plug connection -2-
(-b-
) and disconnect it.
- Release connector -c-
and pull it off the retaining clip.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

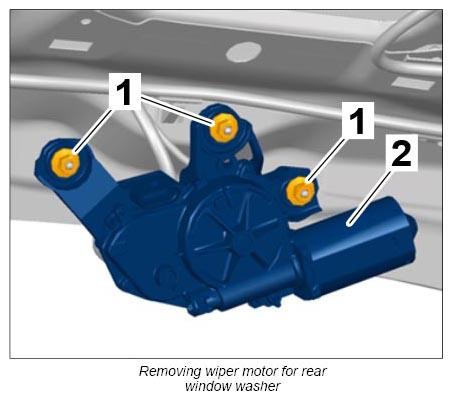

- Screw off fastening nuts -1-
.
- Remove wiper motor for rear window washer -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
