Removing wiper blade

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

  1. Switch off ignition and pull remote control out of ignition lock.

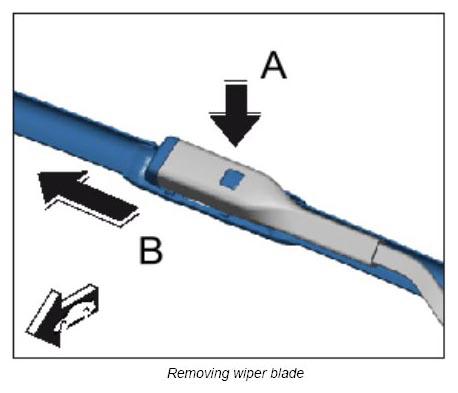

  2. Lift up wiper arm, release wiper blade -A-  and pull it out of the guide -B-  .
G12837213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
