Removing wiper arm
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
Information
To counteract the deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions. However, the wiper arm may only be removed and installed in the lower parked position. Before removing or installing the wiper arm, operate the wiper once and watch whether the wiper is moved up again slightly into the upper parked position after it has reached the lower parked position. In this case, operate the wiper again so that the wiper arm is moved into the lower parked position.
- Move the windscreen wiper to its lower parked position using the one-touch wipe function.
- Switch off ignition and pull remote control out of ignition lock.
- Lever off cap -1- .
- Screw off fastening nut -2-
.

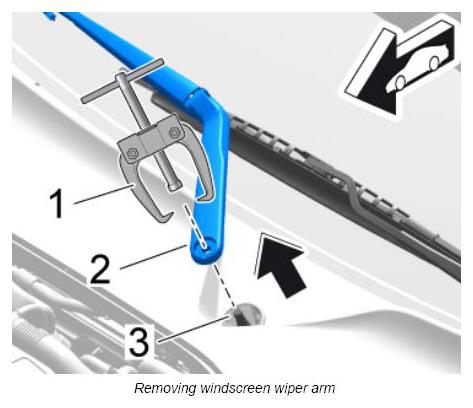

- Loosen windscreen wiper arm -2- using pole terminal puller Nr.99 -1- and remove it from the windscreen wiper linkage -3- .
