Installing wiper arm

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

To counteract the deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions. However, the wiper arm may only be removed and installed in the lower parked position. Before removing or installing the wiper arm, operate the wiper once and watch whether the wiper is moved up again slightly into the upper parked position after it has reached the lower parked position. In this case, operate the wiper again so that the wiper arm is moved into the lower parked position.

Information

After removing both windscreen wiper arms, fit the shorter wiper arm on the left side!

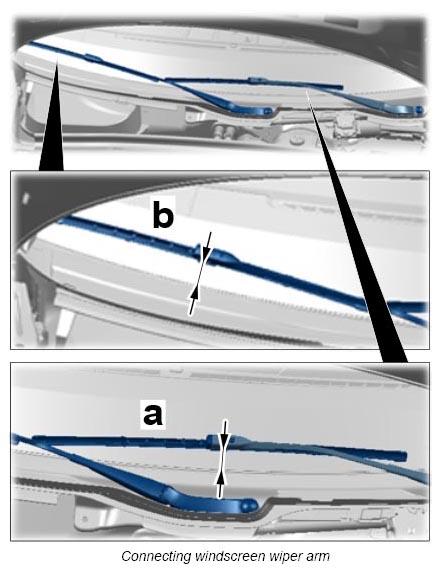

1. Fit wiper arm on the wiper linkage so that dimension -a- Nominal value 30 mm  and dimension -b- Nominal value 34 mm  is guaranteed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

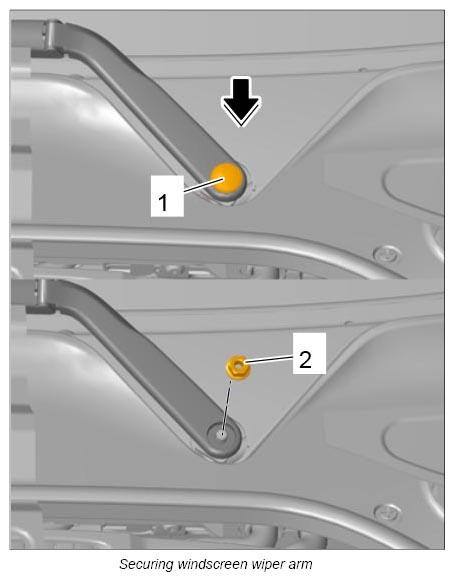

2. Tighten fastening nut -2-  . Tightening torque 32 Nm (24 ft. lb.)
3. Press on the cap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Switch on the windscreen wipers, switch them off again and wait until they come to a stop.
5. Switch off ignition and pull remote control out of the ignition lock.
6. Measure dimension -a- Nominal value 30 mm  and dimension -b- Nominal value 34 mm  again.
