Removing wiper linkage

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Switch off ignition and pull remote control out of ignition lock.

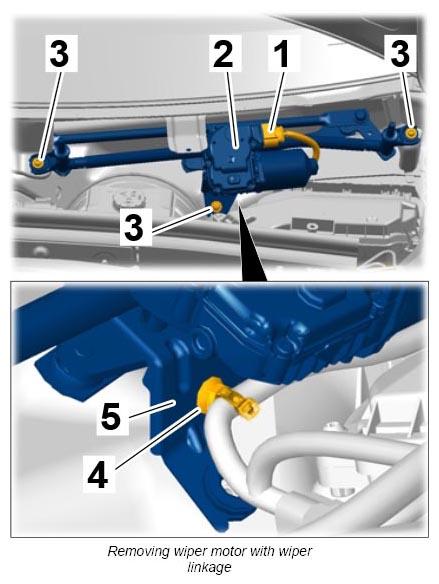

Release electric plug connection -1- and pull it off the wiper motor -2- .
Unscrew fastening screws -3- .
Unclip the holder -4- for the electric line at the holder -5- .
Remove wiper motor with wiper linkage.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

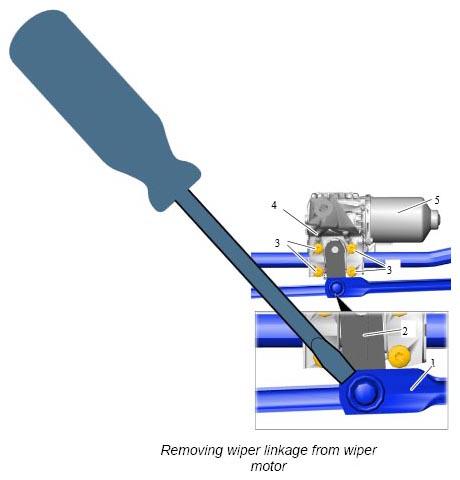

Raise wiper linkage -1- off the lever -2- for the wiper motor.
Unscrew fastening screws -3- and remove holder -4- .
Remove wiper linkage -1- from the wiper motor -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
