Installing wiper motor
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Electrically moved components
- Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
- Installation is performed in reverse order to removal.
- Tighten fastening screws for the wiper motor. Tightening torque 12 Nm (9 ft. lb.) +/-1 Nm (+/-0.5 ft. lb.)

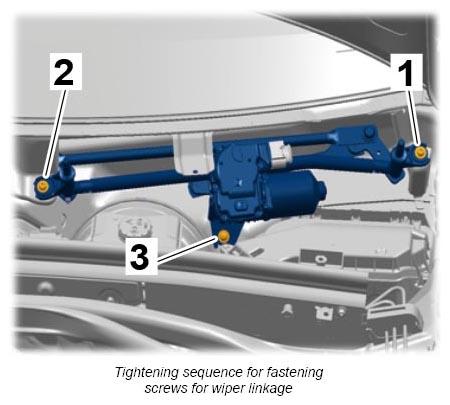

- Tighten fastening screws on the wiper linkage in the sequence -1, 2, 3- . Tightening torque 8 Nm (6 ft. lb.)
