Removing rain sensor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not touch or soil the sensor surface of the rain sensor.

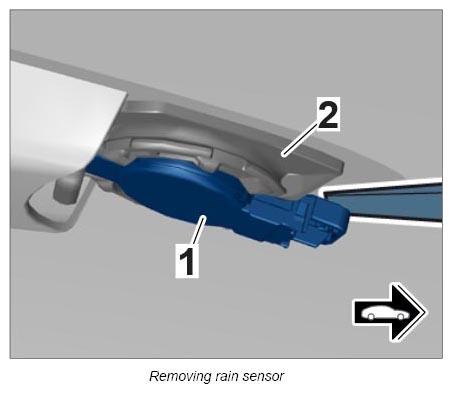

  1. Carefully lever the rain sensor -1-  out of the adhesive plate -2-  using a plastic wedge.
    G12837198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unplug electric plug connection -1-  .
G12837199Courtesy of PORSCHE CARS NORTH AMERICA, INC.
