Installing rain sensor

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Limited rain sensor function if the following points are not observed:

There must be no air trapped between the windscreen and silicone layer on the rain sensor .
The temperature of the windscreen and rain sensor must be approx. 20°C during assembly. Carefully heat the windscreen and rain sensor using a hot-air gun if necessary .
The contact surfaces must be free of grease and dirt .
Do not touch silicone layer on the rain sensor .
Do not remove the protection cap from a new rain sensor until immediately before pressing the rain sensor onto the windscreen .

Clean the contact area for the rain sensor on the inside of the windscreen.

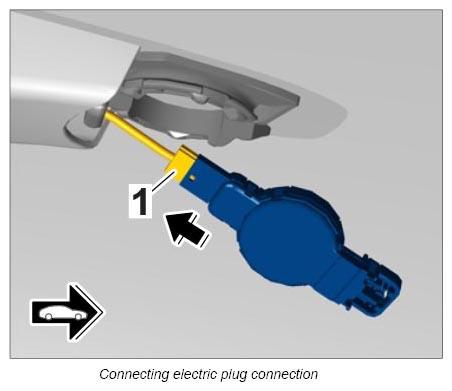

Plug electric plug connection -1- into the rain sensor until it engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove protection cap from the rain sensor.

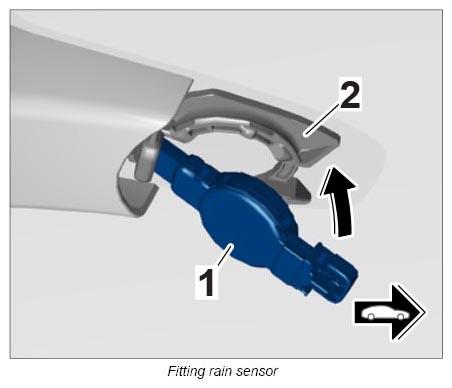

Position rain sensor -1- and insert it into the adhesive plate -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
