Removing B-pillar cover: Notes

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

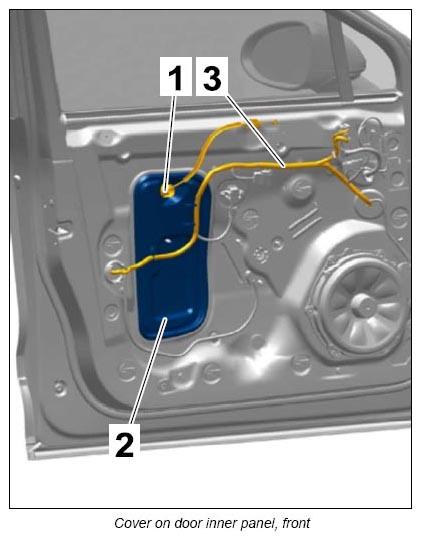

1. Guide out rubber seal -1 -  at the cover -2-  .
2. Guide out wire harness -3-  at the brackets for the cover -2-  .
3. Unclip cover -2-  from door inner panel, guide out door release cable at the cover -2-  and remove cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

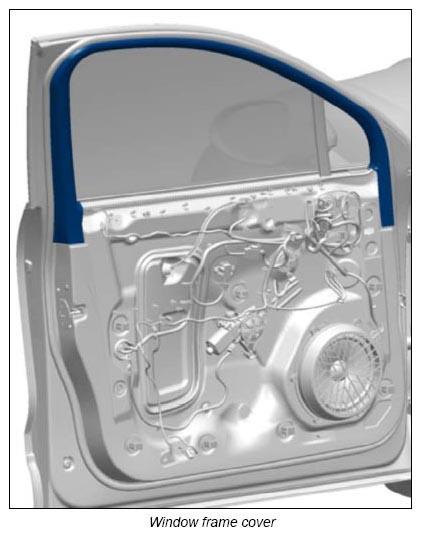

4. Loosen and remove window frame cover from the door.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

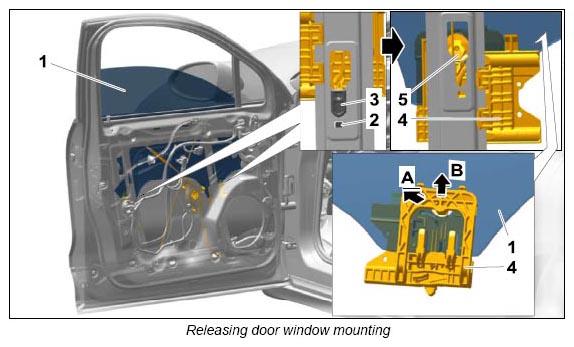

5. Slide the window down until the mountings -4-  are accessible through the cut-outs in the door inner panel.
6. Loosen door window glass -1-  from the relevant mounting points -4-  on the power windows mechanism.
   1. 6.1. Actuate locking mechanism -2-  and remove limit stop -3-  on the power windows mechanism.

      Move door window glass -1-  down until the locking mechanism -5-  is accessible.

      Actuate locking mechanism -5-  using a suitable tool -arrow A-  and carefully raise the door window glass -1-  (-arrow B-  ).

   2. 6.2. Pull door window glass -1-  fully up -arrow B-  out of the mounting points -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

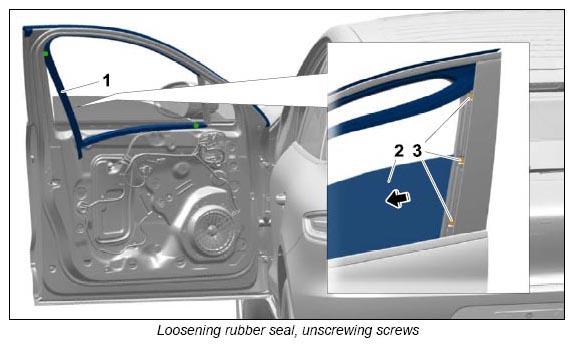

7. Pull inner rubber seal -1-  in the side area of the cover and at the bottom out of the door frame.
8. Carefully adjust the door window glass -2-  until the screws -3-  are accessible.
9. Unscrew screws -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

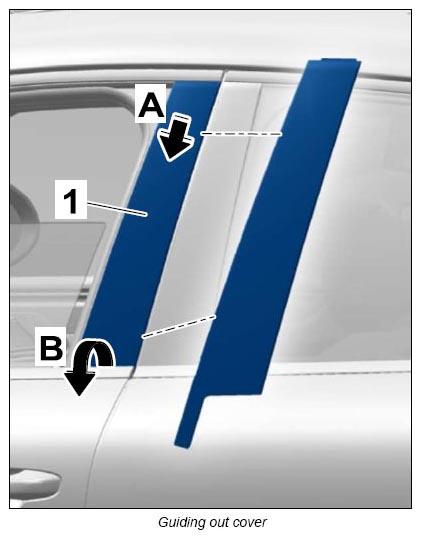

10. Slide the cover -1 -  down slightly -arrow A-  , detach it from the door and then guide it up and out -arrow B-  .
