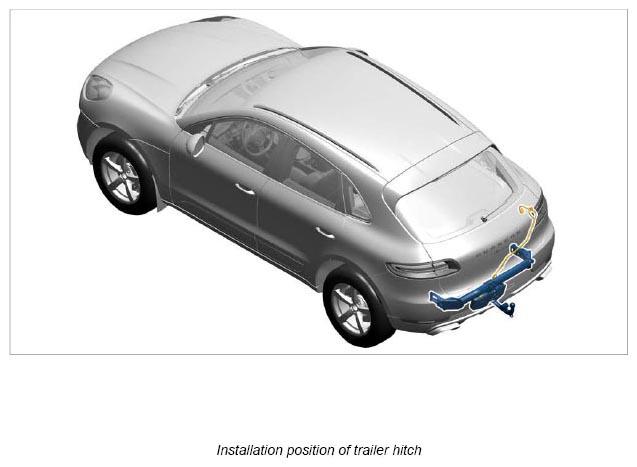

Removing trailer hitch
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Always replace self-locking nuts and screws.
Information
- Another person is needed for removing and installing the trailer hitch because of its weight.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

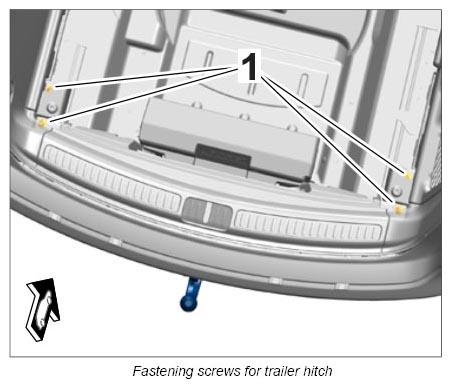

- Unscrew fastening screws -1-
for trailer hitch.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

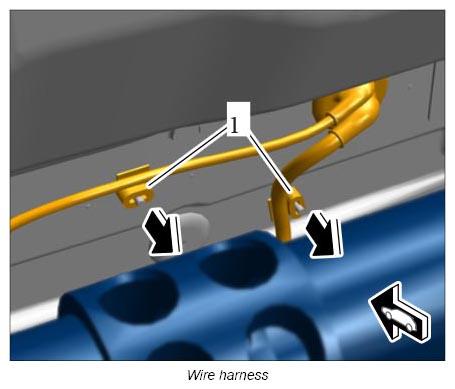

- Carefully pull the trailer hitch back and unclip mounting -1 -
for wire harness.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Pull out grommet and pull wire harness out of the bodyshell opening.
- Remove trailer hitch.
