Removing rear spoiler

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

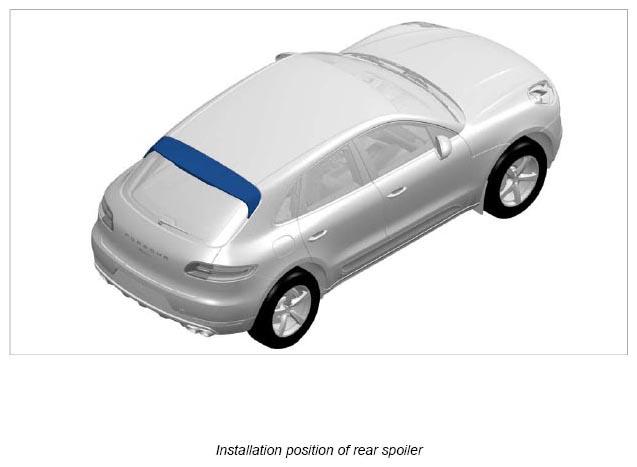

G12890288Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release washer fluid line from spray nozzle using a screwdriver -1-  and remove it.

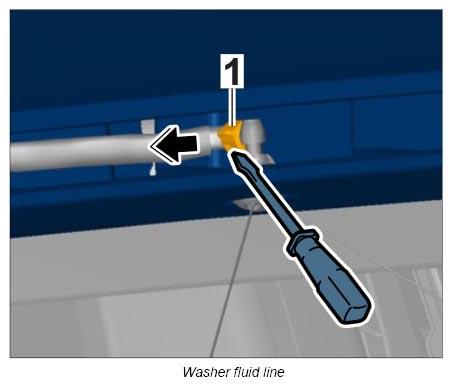

    G12890289Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric plug connection -1-  for antenna cable and disconnect it.

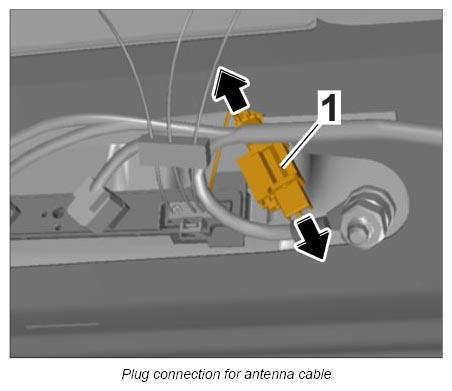

    G12890290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove caps -1-  on rear spoiler.
    1. 3.1. Unscrew and remove fastening nut -2-  .
    2. 3.2. Unscrew and remove fastening screw -3-  .

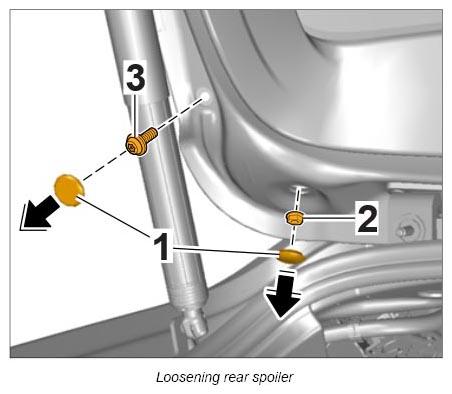

    G12890291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Carefully unclip rear spoiler -1-  from the bracket by pulling it to the rear.

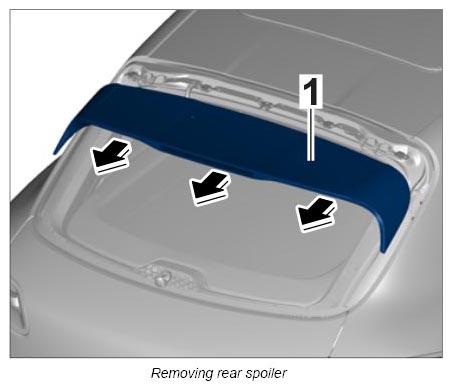

    G12890292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull out wiring harness and washer fluid line.
  6. Remove rear spoiler.
