WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

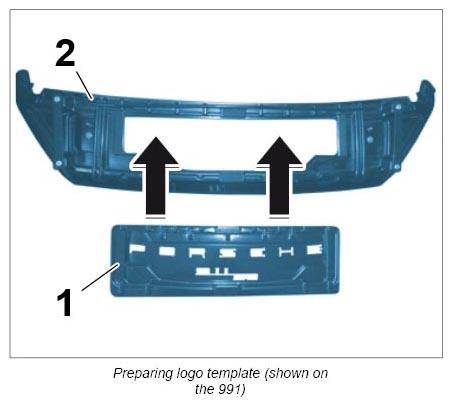

Insert the relevant interchangeable insert -1-
into logo template -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

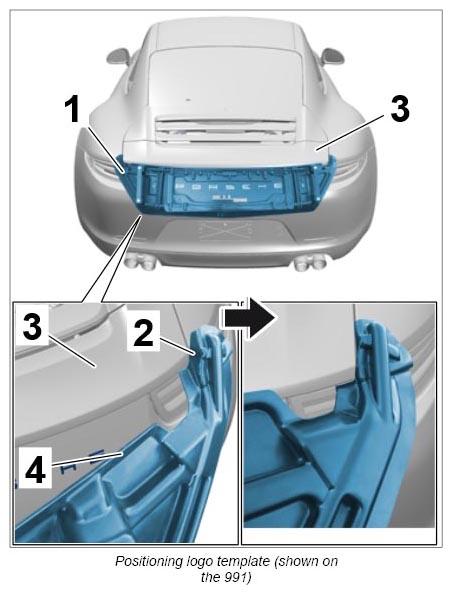

Position the logo template -1-
on the vehicle.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

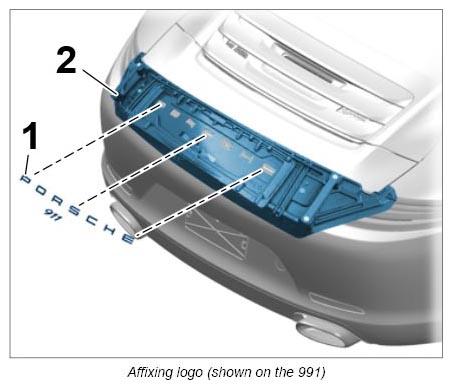

Remove protective paper from the logo -1-
.
Align the logo -1-
using the logo template -2-
and press it on firmly.
