Replacing roof molding

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

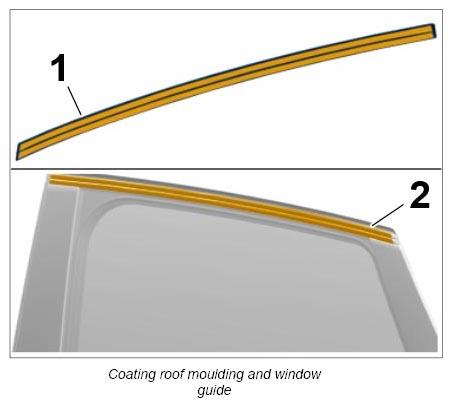

Coat new roof molding -1- and window guide -2- with a light coating of rubber lubricant before installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

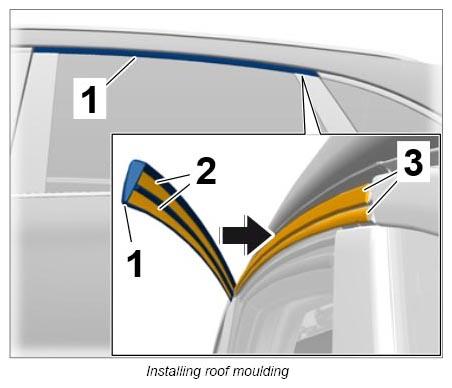

Install roof molding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Align roof molding -1- on the window guide and starting at the front, fit it on the window guide by pressing it on uniformly.
2. 2.2. Make sure that the profile strips of the roof molding -2- engage correctly in the profile of the window guide -3- .
