Removing door entry guard: Notes

Information

The door entry guard can only be installed and removed when the doors are open. The illustration shows the vehicle without doors for the sake of clarity.

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

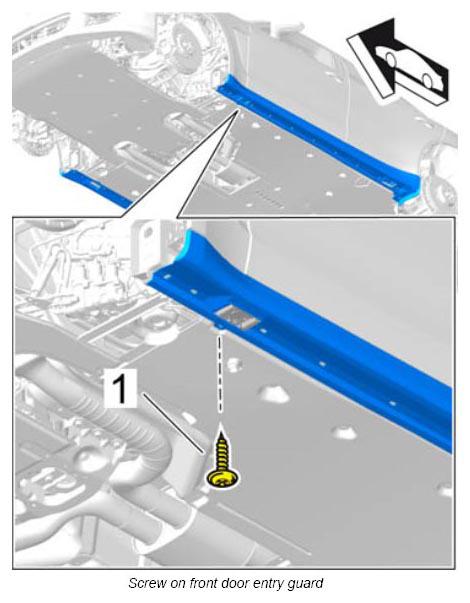

1. Unscrew front fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

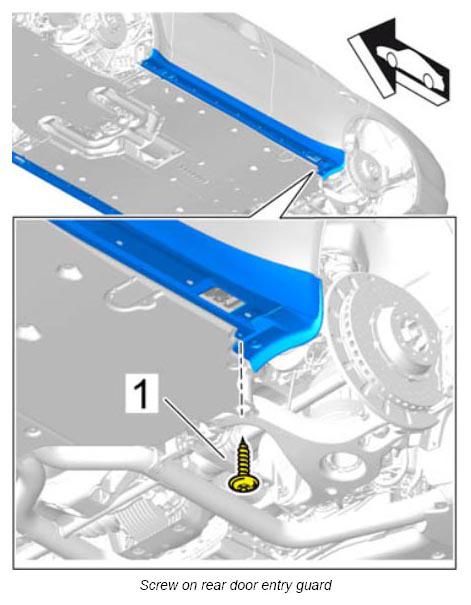

   Unscrew rear fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

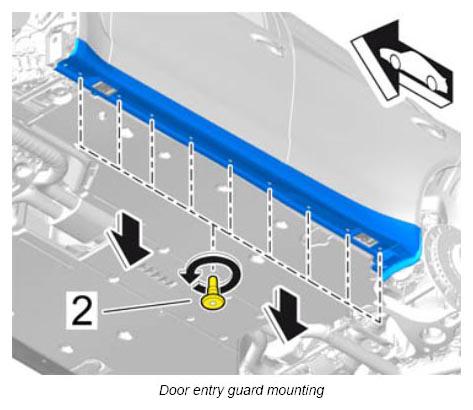

2. Unscrew fastening screws on the door entry guard -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

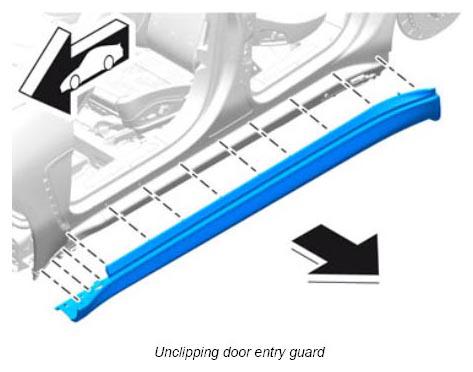

3. Unclip door entry guard.

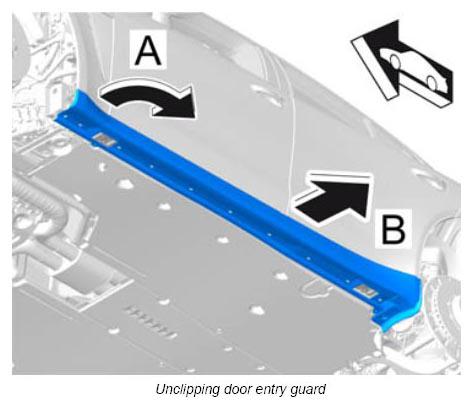

   1. 3.1. Unclip door entry guard in direction -A-  , starting from the front. Then, unclip door entry guard completely in direction -B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

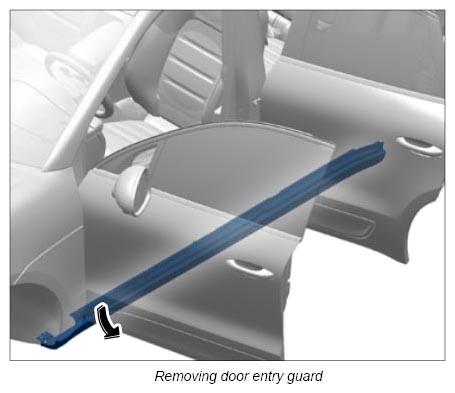

4. Remove door entry guard.

   Information

   Cover add-on parts and adjacent areas.

   Protect components against scratching and damage.

   1. 4.1. Guide door entry guard out of the door gap at the front and rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
