Removing front logo

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

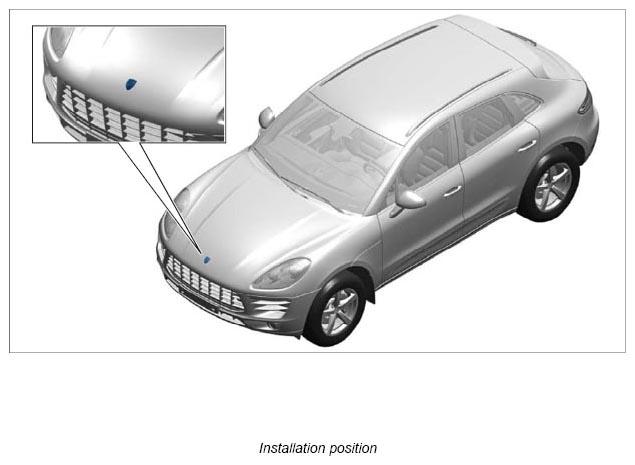

G12890245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open the front lid.

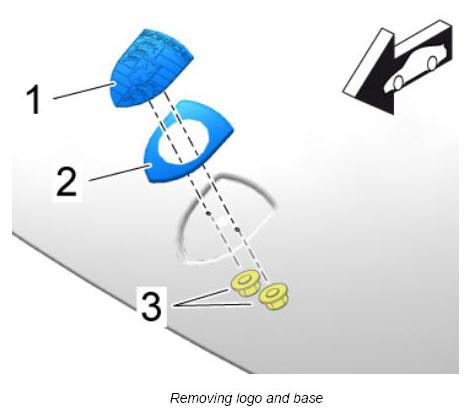

    G12890246Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove logo.
    1. 2.1. Screw off fastening nuts -3-  .
    2. 2.2. Remove logo -1-  and base -2-  .
