Removing front air grille
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
- Some steps must be carried out automatically.
- Some of the repair illustrations show only one side of the vehicle.

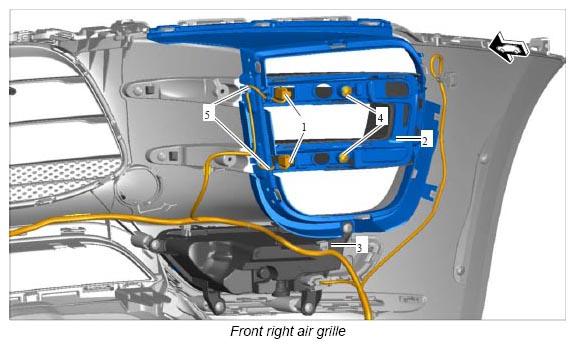

- Remove fog lights -3- . → 946419 REMOVING AND INSTALLING FOG LIGHTS
- Disconnect electric plug connections -1- on the auxiliary headlight and guide out wire harness -5- at the air grille -2- .
- Unscrew fastening screws -4- .
- Unclip air grille -2-
on the front apron and remove it.
