Removing front spoiler

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

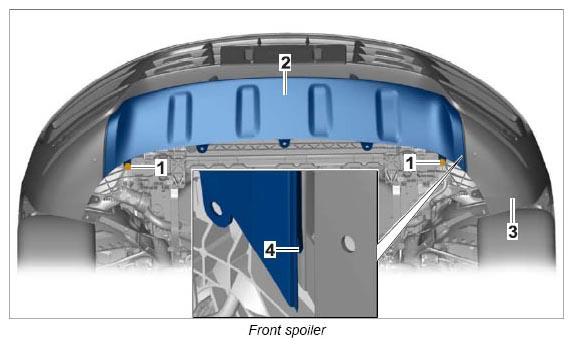

Unscrew fastening screws -1- .
Unclip front spoiler -2- on the front apron -3- .
Guide tabs -4- out of the front apron -3- and remove front spoiler -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

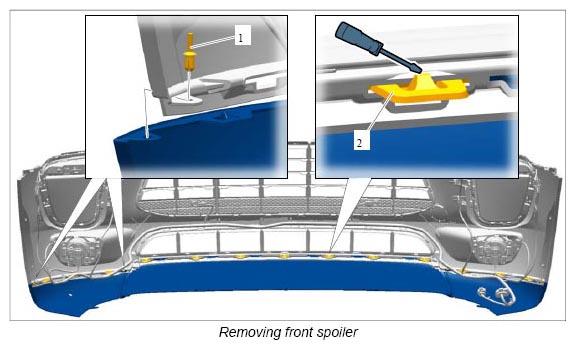

Release expansion rivets -1- and pull them out.
Release all fixing clips -2- and unclip front spoiler from front apron.
Remove front spoiler.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
