Replacing transport wiper

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold out wiper arm.

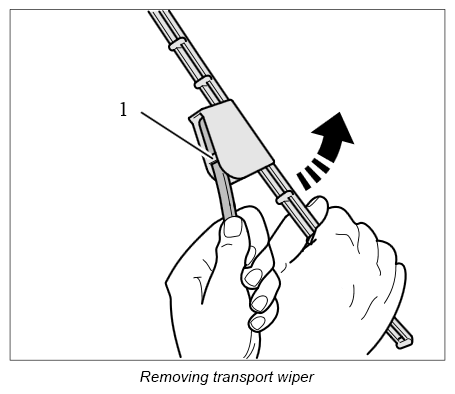

  2. Break off bar on transport wiper -1 -  by moving the transport wiper with force. Make sure that the wiper arm is not deformed in the process.
    G12833988Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit wiper blade. → 922719 REMOVING AND INSTALLING WIPER BLADE
