Vehicle coordinate system
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information

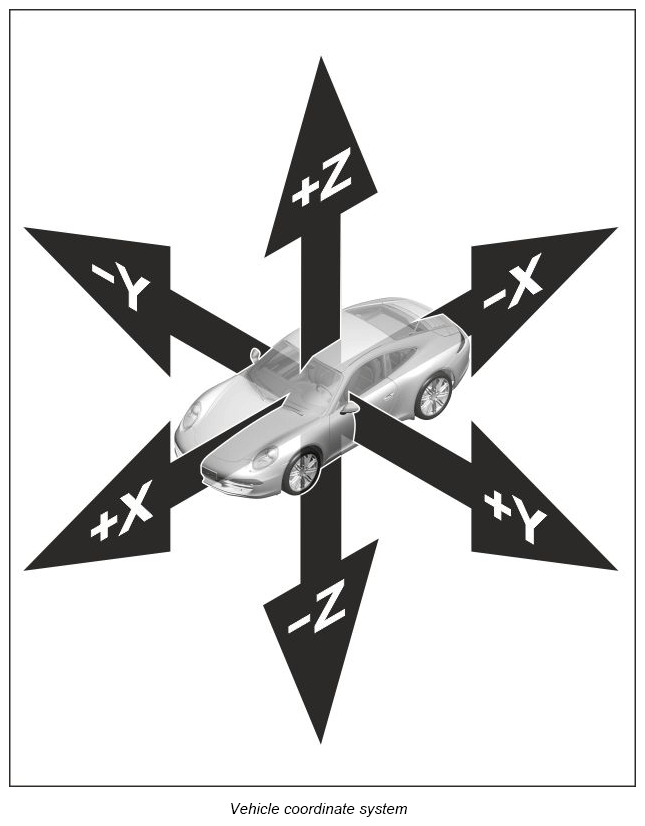

- The vehicle coordinate system shows the 3 dimensions in the room.
- It is used to specify direction during adjustment work.
- It can be used for all model lines.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
