Removing double clutch

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position transmission so that it is vertical on the mounting bracket.
  2. Unscrew fastening screws -1 - 5-  .
    Fig 1: Double Clutch Fastening Screws Tightening Sequence
    G12834038Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit sleeve and puller from the tool set Puller for ATF supply T40123B  on the drive shaft.
    1. 3.1. Slide the sleeve onto the drive shaft.
    2. 3.2. Fit puller.
    3. 3.3. The edge of the puller must be attached under  the sleeve.
    4. 3.4. Close the puller and tighten knurled nut -1-  .
    5. 3.5. Check that the puller is fitted securely on the drive shaft.

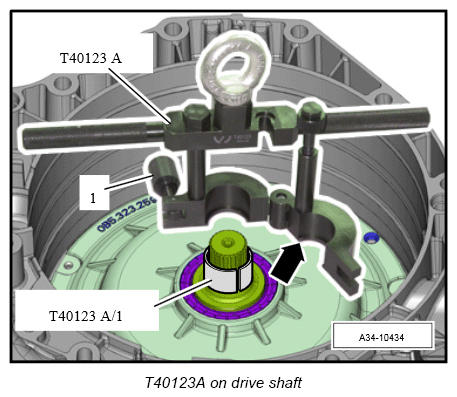

      G12834071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Puller for ATF supply T40123A  must be engaged using hooks 10-222A/2  on the workshop crane WE 1188  .
    G12834072Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull the double clutch out of the transmission housing.
    1. 5.1. Set double clutch and cover down on a soft surface.
    2. 5.2. Do not damage the bar -A-  .
      G12834073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove clutch cover.
    1. 6.1. Remove circlip.
    2. 6.2. Pull off clutch cover.

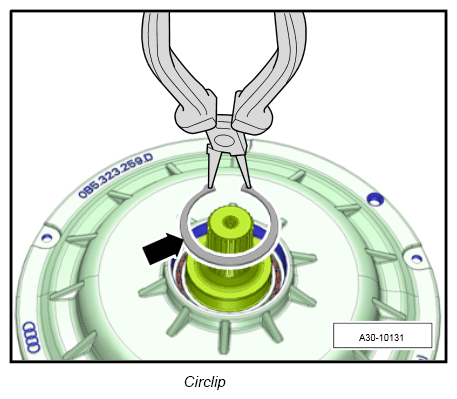

      G12834074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
