Installing double clutch

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing face of the clutch cover.
Information
- Replace O-ring and circlip.

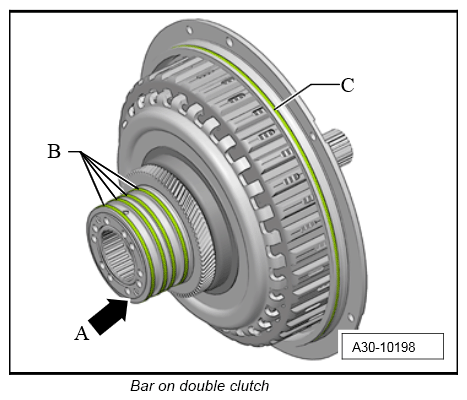

Turn plain compression rings -B- on the hub and check smooth operation and axial play.
Information
- Plain compression rings must move freely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean transmission housing close to the PDK transmission and the sealing face.
Information
- Do not allow particles of dirt to get into the transmission.

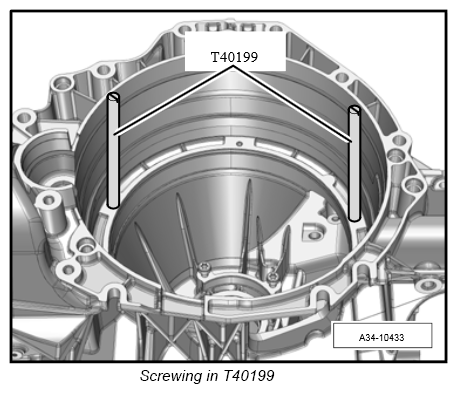

Centring tool T40199 must be screwed in as shown.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

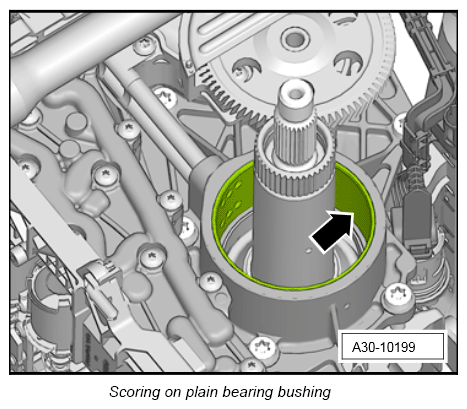

Check plain bearing bushing in the transmission for scoring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat new O-ring -C- and hub -B- with ATF.
Information
- Do not crush new O-ring.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

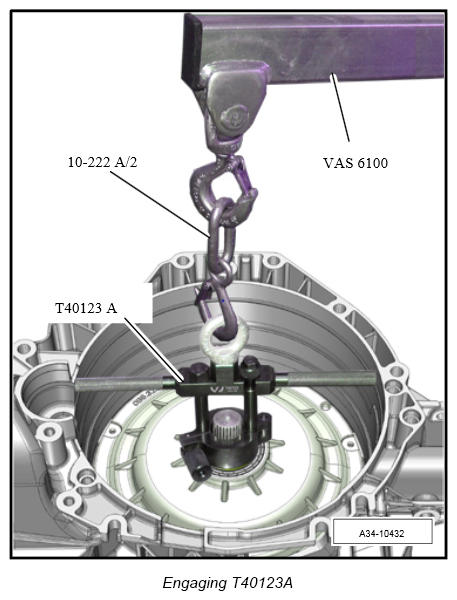

Install double clutch.

7.1. Allow the PDK transmission to engage in the splines of the ATF pump and transmission shaft using short lifting/turning movements.

7.2. PDK transmission is seated correctly if the O-ring on the clutch cover is touching the edge of the transmission housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Tighten fastening screws crosswise.

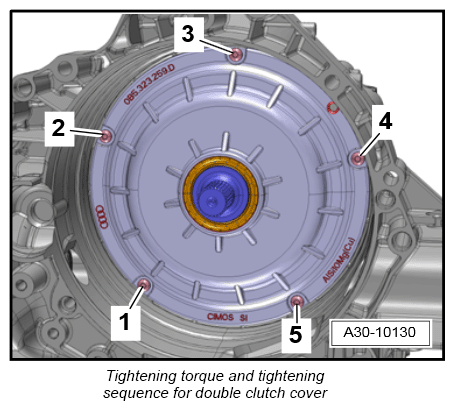

Tighten new fastening screws -1 - 5- . Initial tightening 1 Nm (0.5 ft. lb.) Torque angle +90° Final tightening +10 Nm (+7.5 ft. lb.)

Fig 1: Double Clutch Fastening Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
